Electric Scissor Lifts

null
  • Tilt sensor 1.5 x 3.5
  • Drivable at full height
  • Variable speed, front two wheel hydraulic drive
  • 90° steering (zero inside turning radius
  • Wet disc SAHR brakes
  • Proportional controls for drive & lift functions
  •  0.91 m roll out extension deck
  • 24V DC power source
  • 250 Ah batteries
  • Low voltage battery protection
  • 25% gradeability

Electric Self Propelled Scissor Lift

Model – Scissor Lifts Platform Height Working Height Platform Capacity Overall Width Stowed Height Weight Platform Size Specs
15ft Scissor Lift – Optimum 6 4.35m 6.35m 270kg 0.76m 1.9m 1290kg 0.68m x 1.68m [PDF Download]

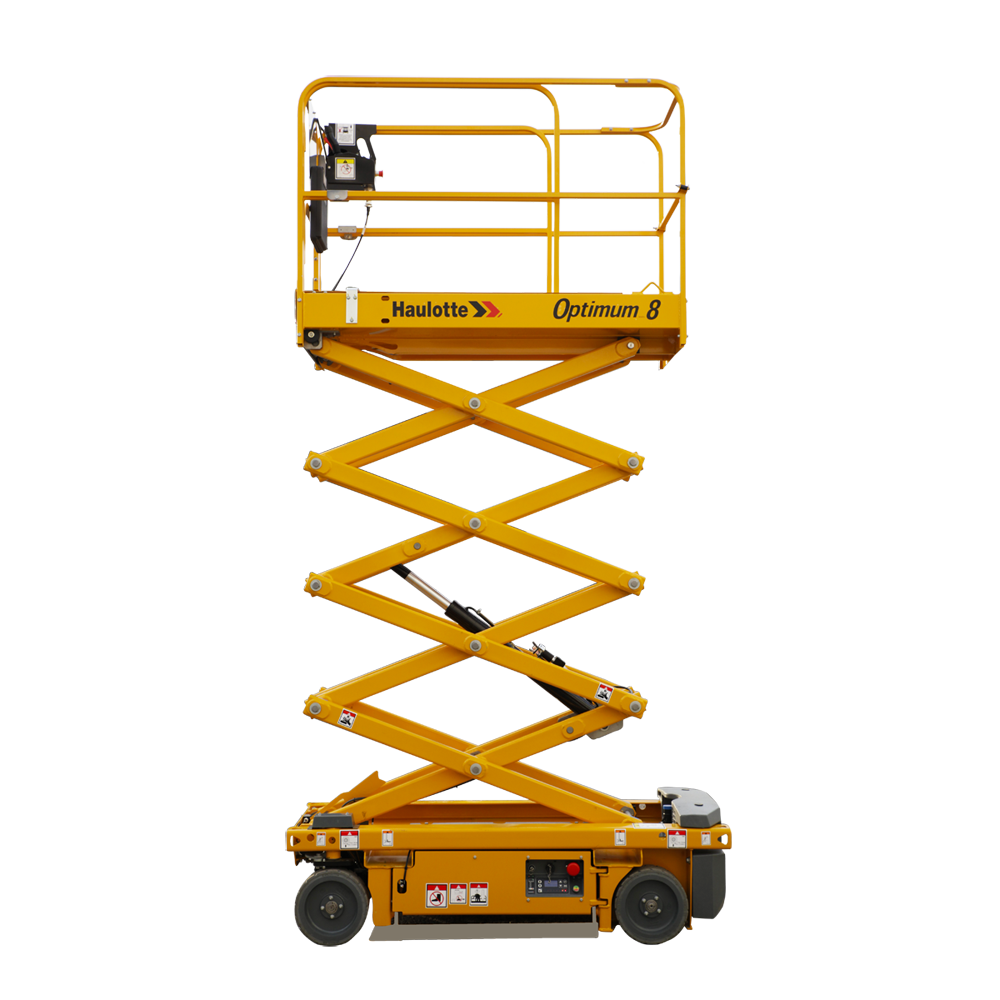

19ft Scissor Lift – Optimum 8.1 5.76m 7.76m 230kg 0.76m 2.0m 1572kg 0.68m x 1.73m [PDF Download]
19ft Scissor Lift -SJ3219 5.79m 7.79m 227kg 0.81m 1.99m 1557kg 0.66m x 1.63m [PDF Download]
19ft Scissor Lift – S1930E 5.6m 7.6m 227kg 0.76m 1.97m 1572kg 0.64m x 1.56m [PDF Download]
20ft Scissor Lift Narrow – SJ3220 6.1m 8.1m 363kg 0.81m 1.97m 1872kg 0.71m x 2.13m [PDF Download]
26ft Scissor Lift Narrow – SJ3226 7.92m 9.92m 227kg 0.81m 2.15m 1890kg 0.71m x 2.13m [PDF Download]
26ft Scissor Lift Narrow – Compact 10N 8m 10m 230kg 0.81m 2.17m 2160kg 0.71m x 2.3m [PDF Download]
26ft Scissor Lift – SJ2646 7.92m 9.92m 454kg 1.17m 2.15m 2760kg 1.07m x 2.13m [PDF Download]
32ft Scissor Lift Narrow – GS3232 9.75m 11.75m 227kg 0.81m 2.43m 2352kg 0.71mx 2.26m [PDF Download]
32ft Scissor Lift – Compact 12 10m 12m 450kg 1.2m 2.38m 2470kg 1.2m x 2.3m [PDF Download]
32ft Scissor Lift – SJ4632 9.75m 11.75m 318kg 1.17m 2.24m 2720kg 1.07m x 2.13m [PDF Download]
32ft Scissor Lift – S3246E 9.75m 11.75m 317kg 1.16m 2.51m 3003kg 1.14m x 2.38m [PDF Download]
40ft Scissor Lift -Compact 14 12m 14m 350kg 1.2m 2.5m 3170kg 0.92m x 2.3m [PDF Download]
